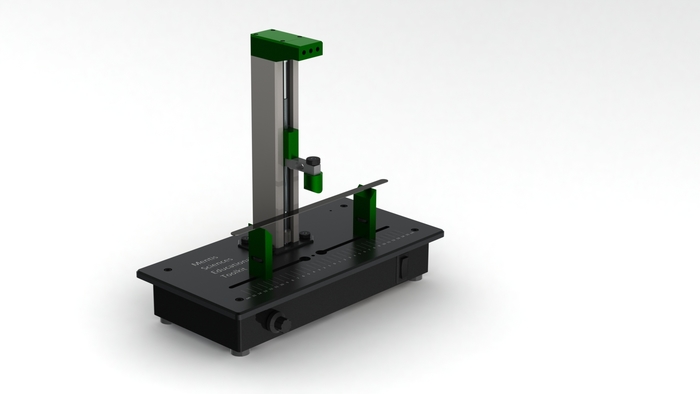

The objective of this experiment is to explore the flexural properties of beams of varying geometries and materials placed over a support span. Furthermore, the flexural performance of the beam related to the span width will be examined.
A. 1/4" -20 x 0.5" Thumbscrew (x2)
B. 1/4" - 20 x 0.75" Thumbscrew
C. Load Cell Extension
D. Support (x2)
E. Aluminum Sample
F. Load Nose
